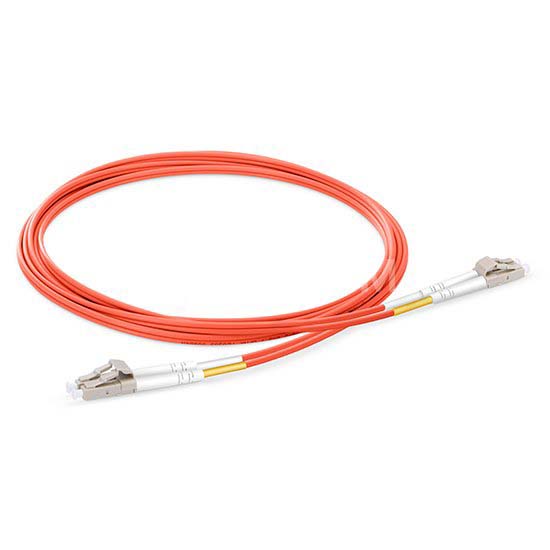

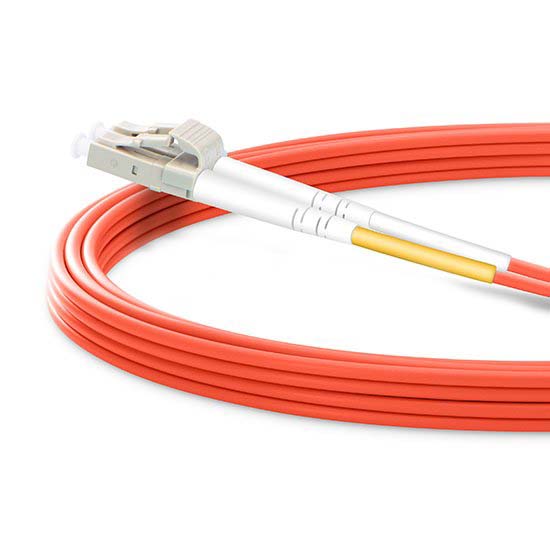

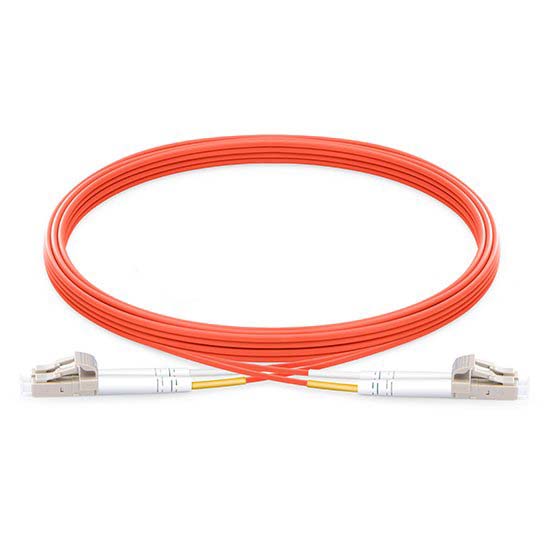

LC UPC to LC UPC Duplex 2.0mm PVC (OFNR) OM2 Multimode Fiber Optic Patch Cable

Product introduction

Download SPEC

High Quality and Cost-effective 50/125μm OM2 Multimode Bend Insensitive Fiber Optic Cable

The 50/125μm OM2 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Connector	LC to LC	Jacket OD	2.0/3.0mm
Fiber Type	50/125μm	Fiber Count	Duplex
Polish Type	APC	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Attenuation at 850 nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300 nm	1.0 dB/km
Mini Bend Radius	7.5mm	Operating temperature	-40~75°C
Fiber Grade	OM2	Polarity	A(Tx) to B(Rx)

---

End Face, 3D Interferometer, IL and RL Testing

End Face,3D interferometer, IL and RL testing station. All of our fiber patch cables will be tested on end-face inspection station. 3D interferometer mainly used for testing MTP/MPO cables and IL and RL testing for standard fiber patch cables, uniboot cables and armored cables.

---

End Face Testing

---

3D Interferometer

---

Insertion Loss and Return Loss Testing
