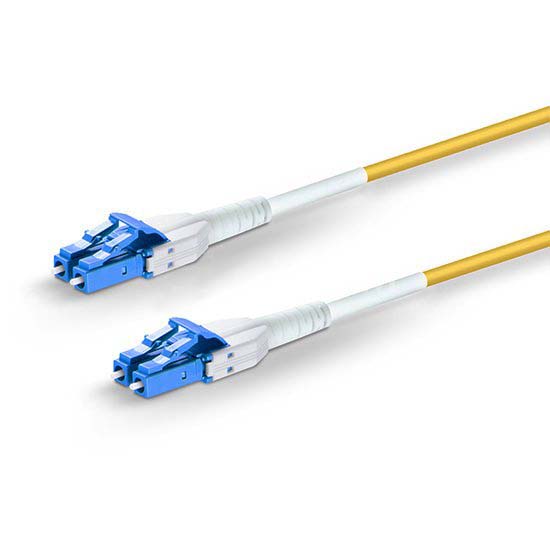

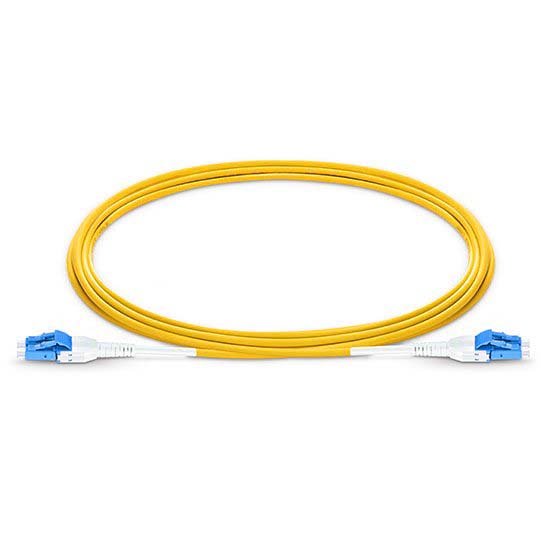

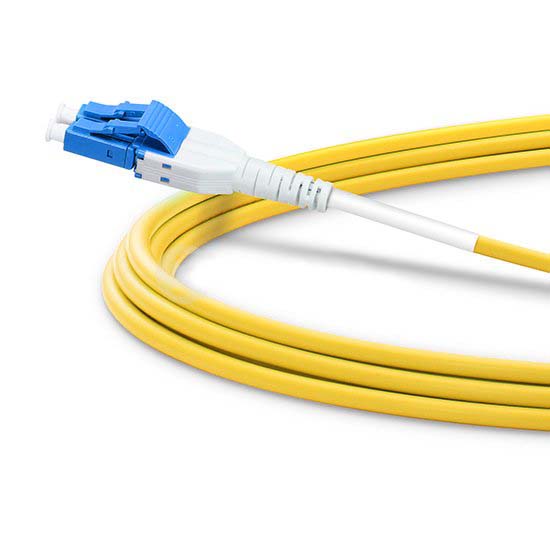

LC Uniboot to LC Uniboot Duplex 2.0mm OS2 Singlemode Uniboot BIF Fiber Patch Cable, PVC LSZH (OFNR)

Product introduction

Download SPEC

High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable

The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Fiber Connector	LC UNI to LC UNI	Fiber Type	OS2 9/125μm
Fiber Jacket	2.0mm, PVC,LSZH	Fiber Counts	2 Fibers
Insertion Loss	≤0.2dB	Return Loss	≥50dB
Pull-out Force	100N	Durability	500 Cycles
Operating Temperature	-40 to + 85°C	Storage Temperature	-45 to + 85°C
Fiber Grade	G. 657. A1	Minimum Bend Radius	10mm

---

End Face, 3D Interferometer, IL and RL Testing

End Face,3D interferometer, IL and RL testing station. All of our fiber patch cables will be tested on end-face inspection station. 3D interferometer mainly used for testing MTP/MPO cables and IL and RL testing for standard fiber patch cables, uniboot cables and armored cables.

---

End Face Testing

---

3D Interferometer

---

Insertion Loss and Return Loss Testing
