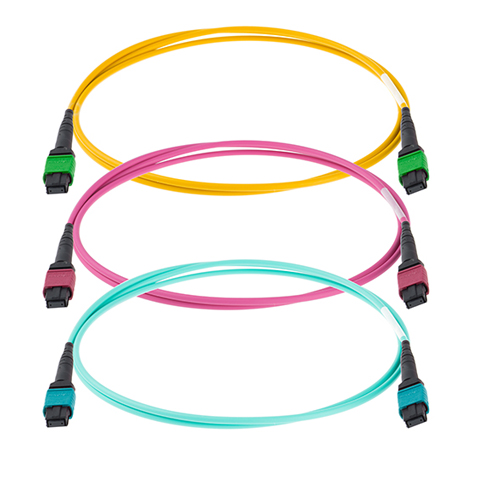

MPO MTP Patch Cord
- Product description: MPO MTP Patch cord
Product introduction

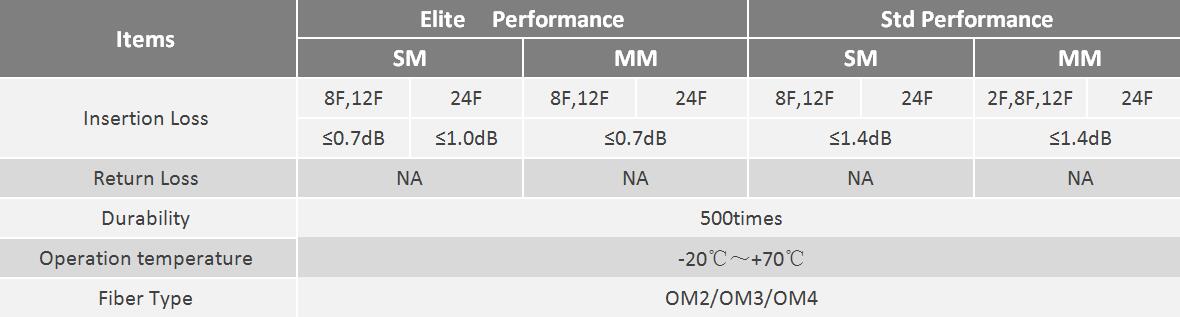

Product Specification
Connector A
MTP /MPOFemale (pinless)
Connector B
MTP/MPO Female (pinless)
Glass Fiber
Corning ClearCurve®
Fiber Mode
OM4 (OM3) 50/125μm
Wavelength
850/1300nm
Transmission Distance
150m @40/100G, 400m @10G
MTP Connector IL
0.35dB Max(0.15dB Typ.)
LC Connector IL
≤0.2dB
MTP Connector RL
≥20dB
LC Connector RL
≥20dB
Attenuation at 850nm
≤2.3dB
Attenuation at 1300nm
≤0.6dB
Jacket OD
3.0mm
Fan-Out Diameter
2.0mm
Installation Tensile Load
100 N
Long-Term Tensile Load
50 N
Storage Temperature
-40°C to +85°C
Operating Temperature
-10°C to +70°C
Cable Jacket
Plenum (OFNP)
Fiber Count
8 Fibers
