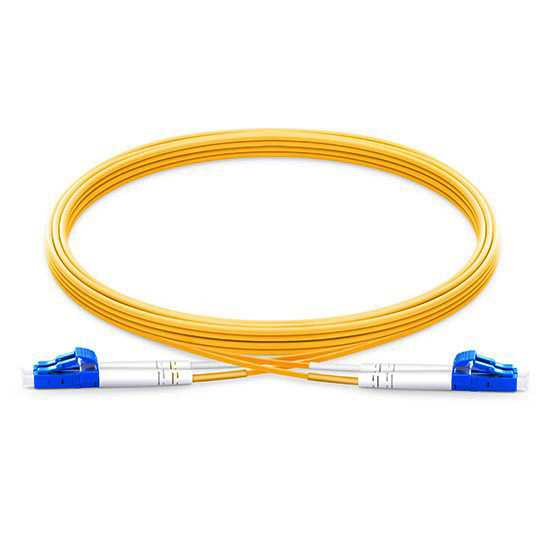

LC UPC to LC UPC Duplex 2.0mm PVC (OFNR) 9/125 Single Mode Fiber Patch Cable

Product introduction

High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable

The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Connector	LC to LC	Jacket OD	2.0/3.0mm
Fiber Type	9/125μm	Fiber Count	Duplex
Polish Type	UPC/APC	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Attenuation at 1310 nm	0.36 dB/km
Return loss	≥50dB	Attenuation at 1550 nm	0.22 dB/km
Mini Bend Radius	30mm	Operating temperature	-40~75°C
Fiber Grade	G.652.D	Polarity	A(Tx) to B(Rx)

Quality Control System:

End Face, 3D Interferometer, IL and RL Testing

End Face,3D interferometer, IL and RL testing station. All of our fiber patch cables will be tested on end-face inspection station. 3D interferometer mainly used for testing MTP/MPO cables and IL and RL testing for standard fiber patch cables, uniboot cables and armored cables.

---

End Face Testing

---

3D Interferometer

---

Insertion Loss and Return Loss Testing
